3.2V 105AH 230AH 250AH 280AH 304K 314AH 680AH EVE LifePO4 Battery Grade A Rechargeable DIY 12V 24V 48V for RV EV Home Energy

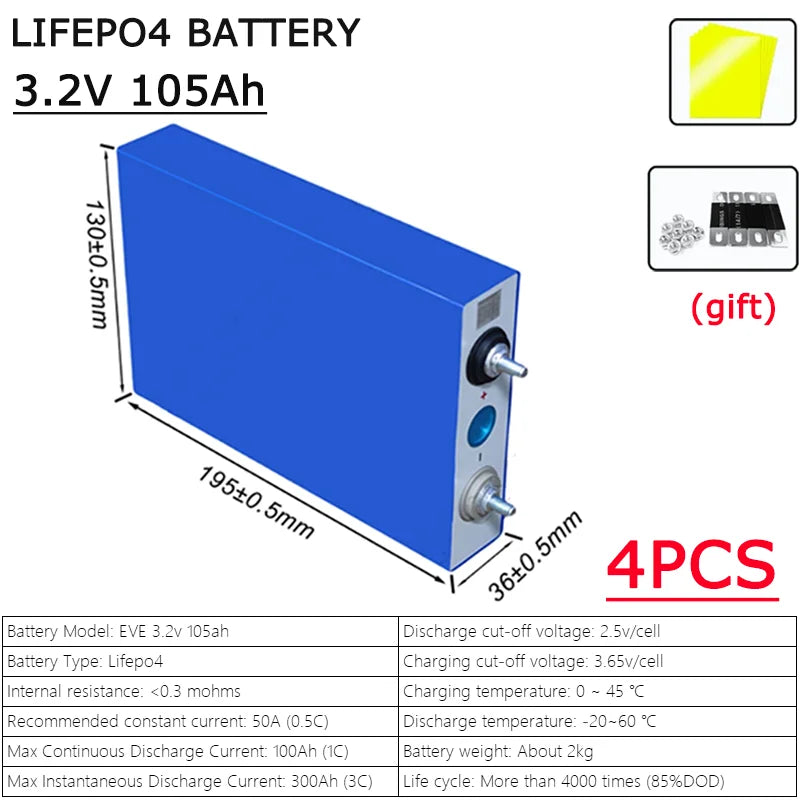

(EVE) 105AH-4PCS
$249.68
Sale price
$249.68
Regular price
$304.72
Skip to product information
Attention: Customs clearance delays may occur during transportation. It is recommended that buyers do not argue casually and communicate with merchants through the backend in a timely manner. We will make every effort to meet the demand, and the merchant will compensate and expedite timely delivery. Thank you for your cooperation and understanding.
3.2V 105AH 230AH 250AH 280AH 304K 314AH 680AH EVE LifePO4 Battery Grade A Rechargeable DIY 12V 24V 48V for RV EV Home Energy
$249.68
Sale price
$249.68
Regular price
$304.72
SPECIFICATIONS
Application: EV,RV,Marine Boat,Home Energy,Solar Power Storage,Off-Grid Solar Power System
Brand Name: SMALL DEN
Certification: CE,FCC,RoHS
High-concerned chemical: None
Model Number: 3.2V 105AH 230AH 250AH 280AH 304K 314AH 680AH
Nominal Capacity: 680AH-105AH
Origin: Mainland China
Rated Voltage: 3.2v
Type: LiFePO4
Voltage: 3.2V
Weight: 2kg-5.5kg
Attention: Customs clearance delays may occur during transportation. It is recommended that buyers do not argue casually and communicate with merchants through the backend in a timely manner. We will make every effort to meet the demand, and the merchant will compensate and expedite timely delivery. Thank you for your cooperation and understanding.
Rappel :En raison de la nature dangereuse des batteries, le transport nécessite des professionnels de la logistique du canal. Veuillez vérifier et suivre votre colis sur le suivant logistique Web :https://t.17track.net/zh-cn#nums

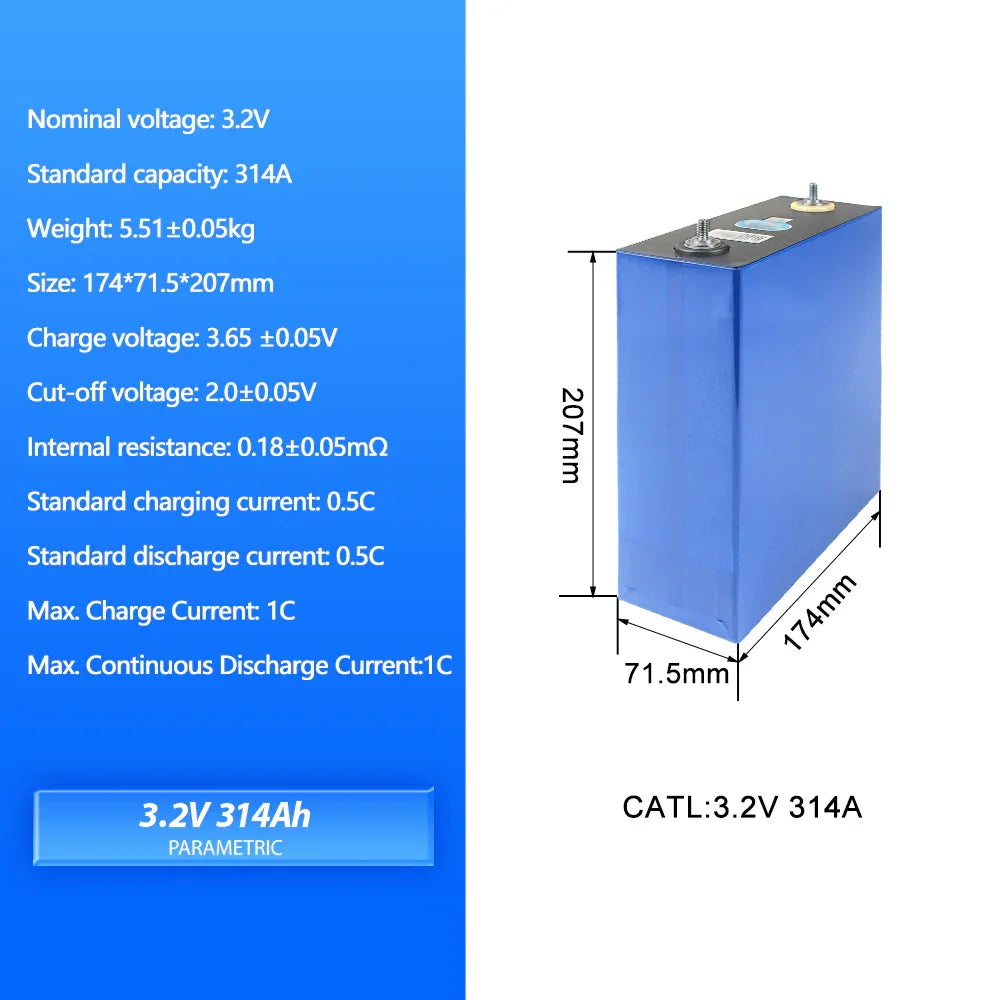

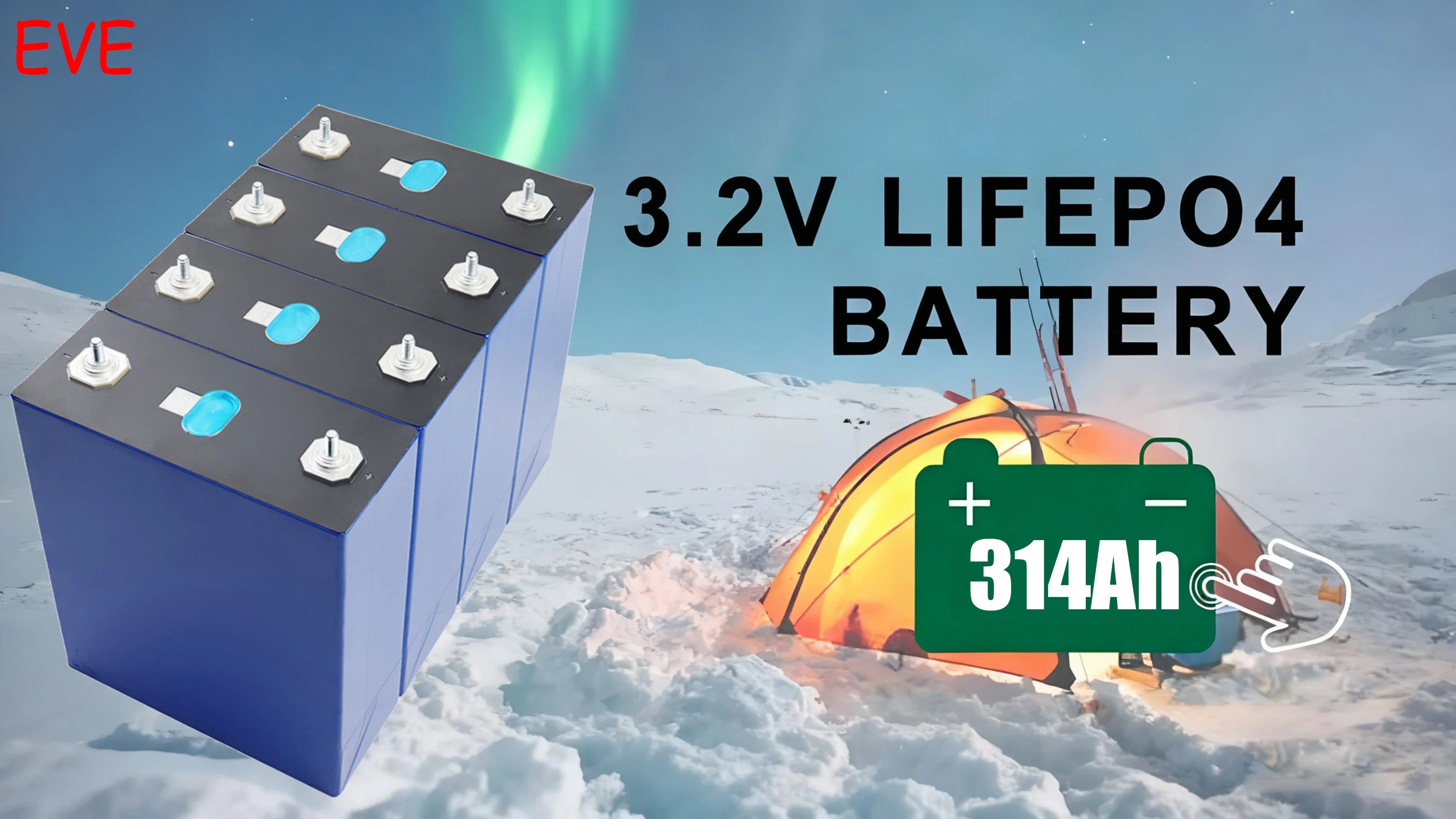

【3.2V 314AH EVE 】
[Product specifications]
Nominal capacity: 314Ah
Nominal voltage: 3.2v

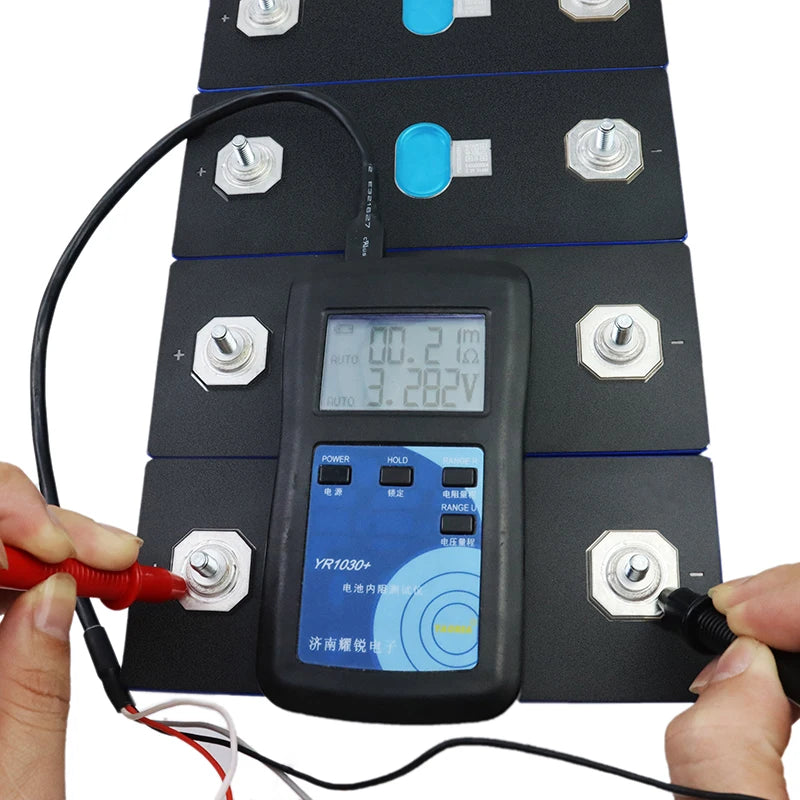

Internal resistance: Less than 0.5 mohms
Life cycle: More than 8000 times (85%DOD)
Combination: It can be 4S 8s 12s 16s, etc.
Recommended constant current: 0.5C
Charging cut-off voltage: 3.65v/cell
Max Continuous Discharge Current: 1C
Max Instantaneous Discharge Current: 3C
Discharge cut-off voltage: 2.5v/cell
Input Load Current: Standard 20A, Fast 40A
Charging temperature:: 0~ 55 ℃
Discharge temperature:: -20~55 ℃
Battery weight: About 5500g
Battery size: 204*173*71mm

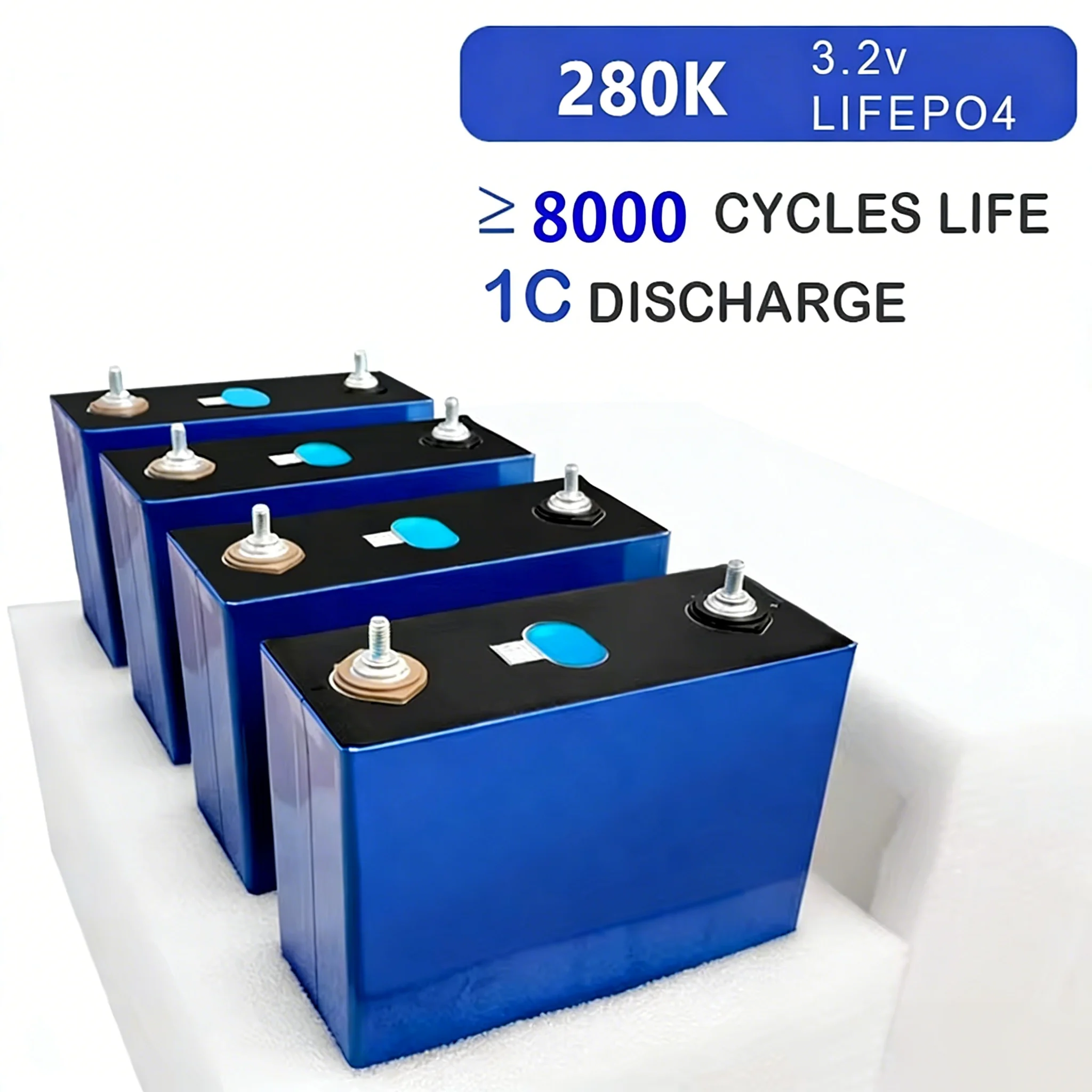

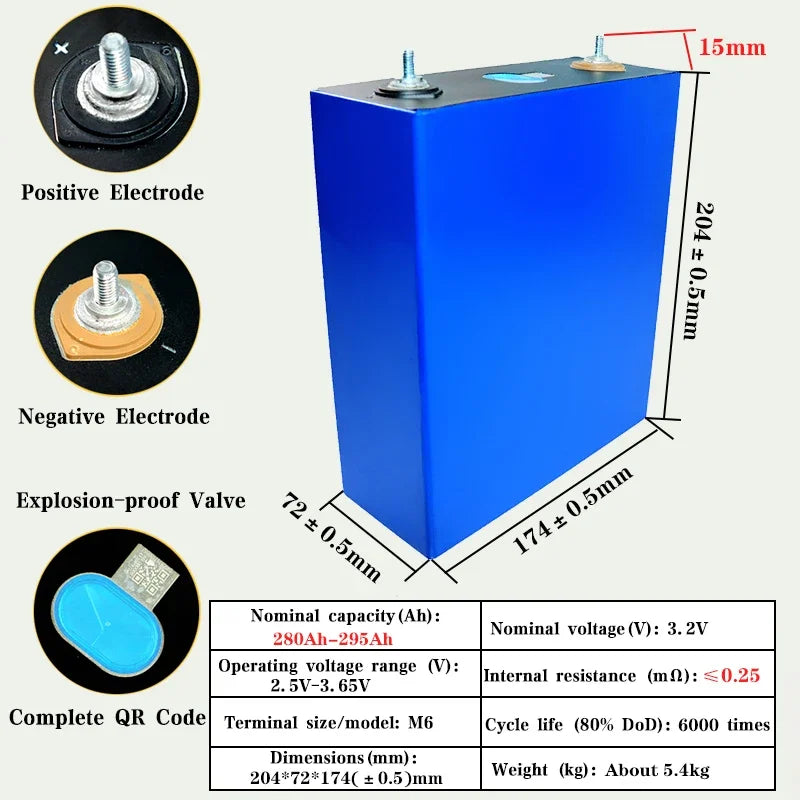

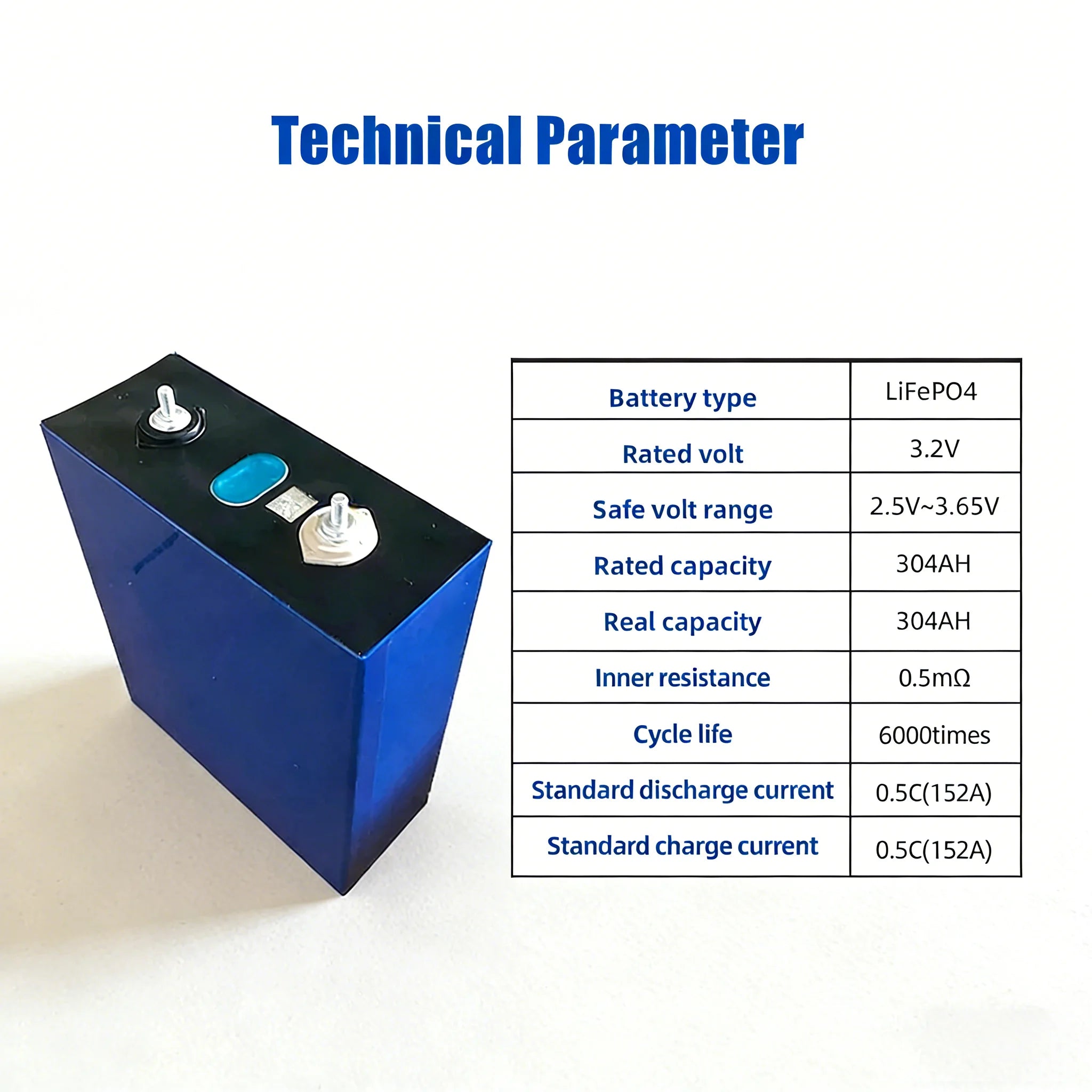

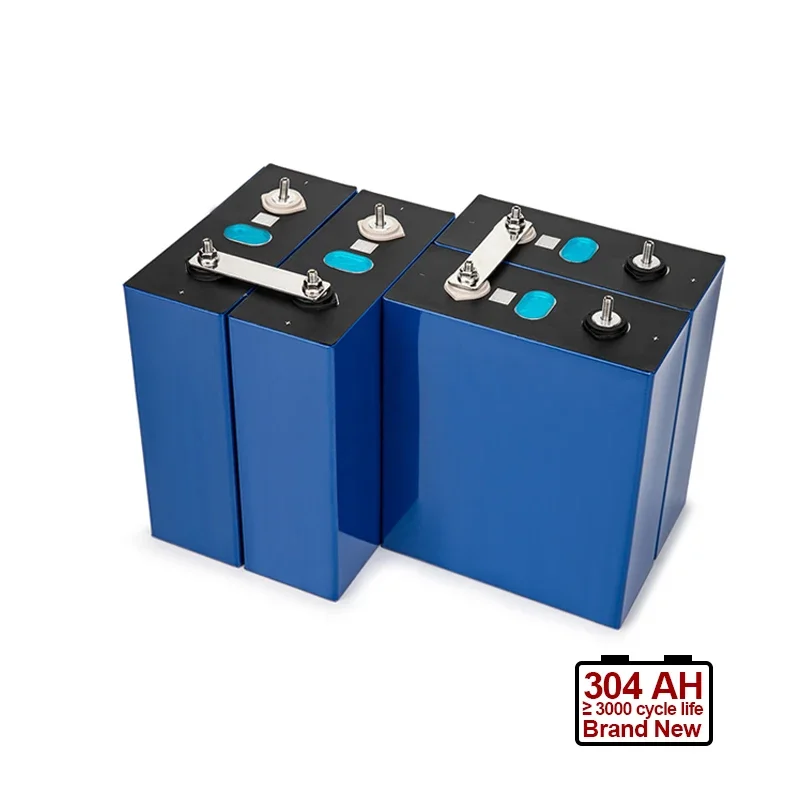

【3.2V 304AH-280K EVE 】
Shell material: Aluminum
Nominal capacity: 304k/280K
Rated voltage: 3.2V
Working voltage range: 2.5V-3.65V

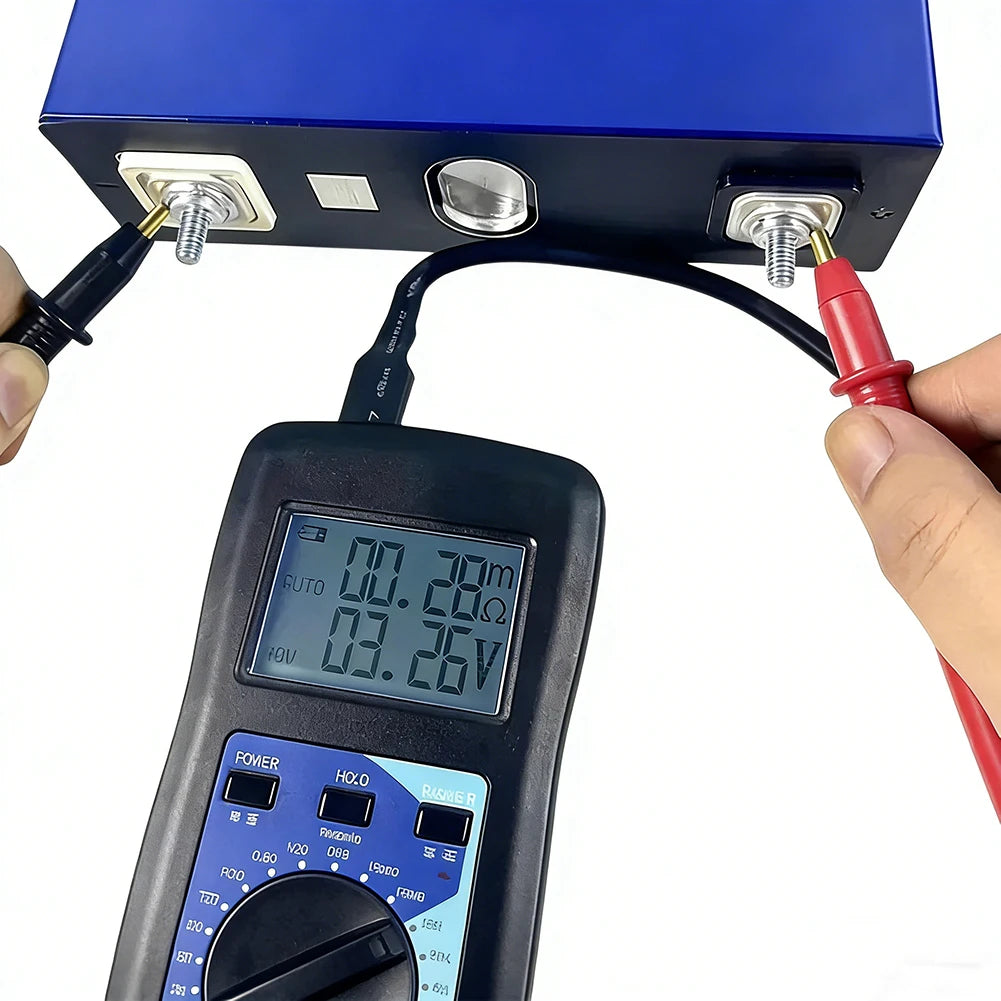

Internal impedance: ≤ 0.30 m Ω
Suggested constant charging current: 0.5c
Maximum charging current: 1c
Suggested constant discharge current: 0.5c
Maximum discharge current: 3c
Size: 205 * 173.6 * 72mm
Cycle life (80% dod): 8000 cycles
Weight: 5.5 kilograms
Charging temperature: 0 to 65 ° C
Emission temperature: -35 to 65 ° C
Screw size: m6
product description：

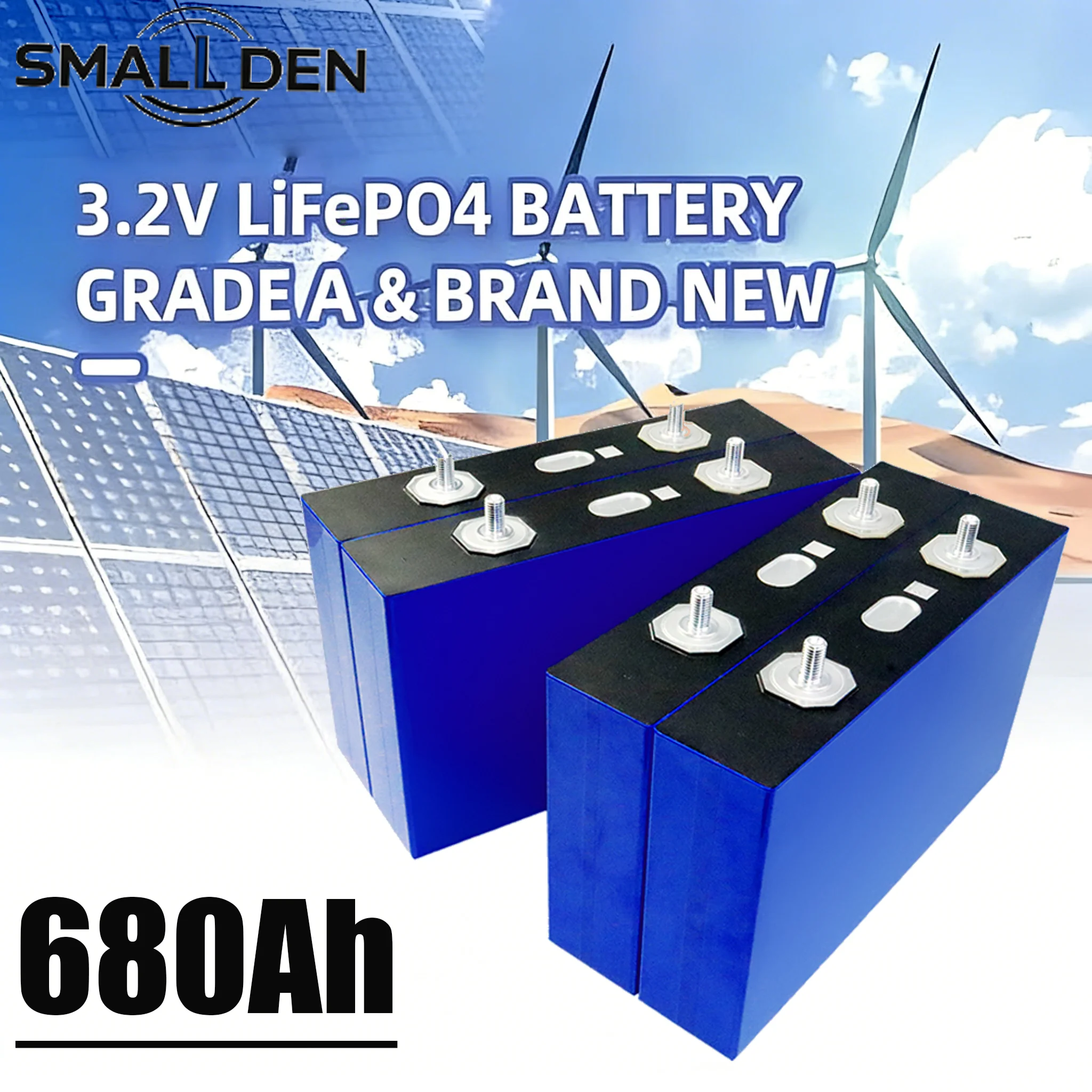

Nominal capacity:680Ah
Nominal voltage：3.2V
Charge cut-offvoltage：3.65V
Discharge cut-off voltage：2.5V (T>09C) 2.0V (T≤0 °C)
Impedance (1kHz)：＜0.5mΩ (19%+5%S0C)
Maximum continuous charge current：680A (1C)
Maximum continuous discharge currenf：680A (1C)
Maximum pulse charge current：1360A (2C/30s)
Charge OperatingTemperature：-10~60C
Discharge OperatingTemperature：-35~60°C
Storage Temperature：One month:-20°C~45°C ;Three months:0C~45°C
Cycle Life:≥8000
Cell Weight:11.5kg
Size:352*230*72mm

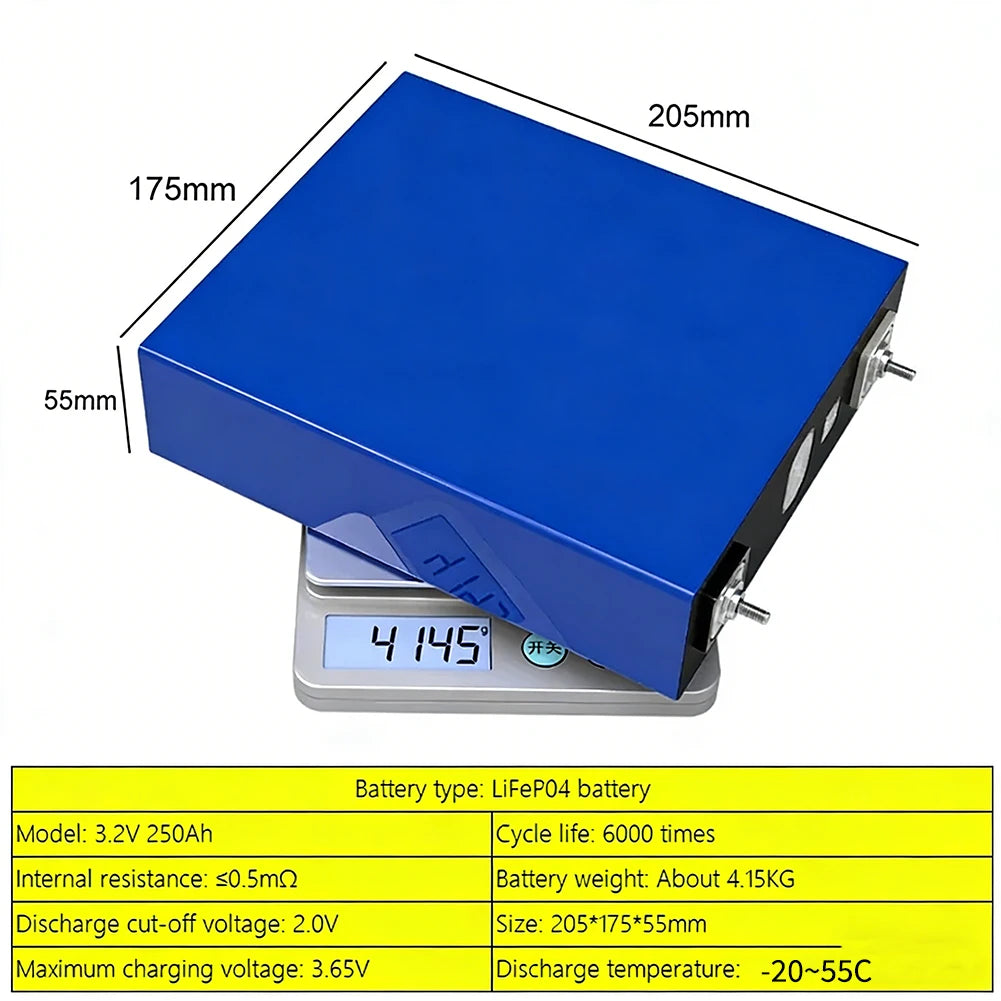

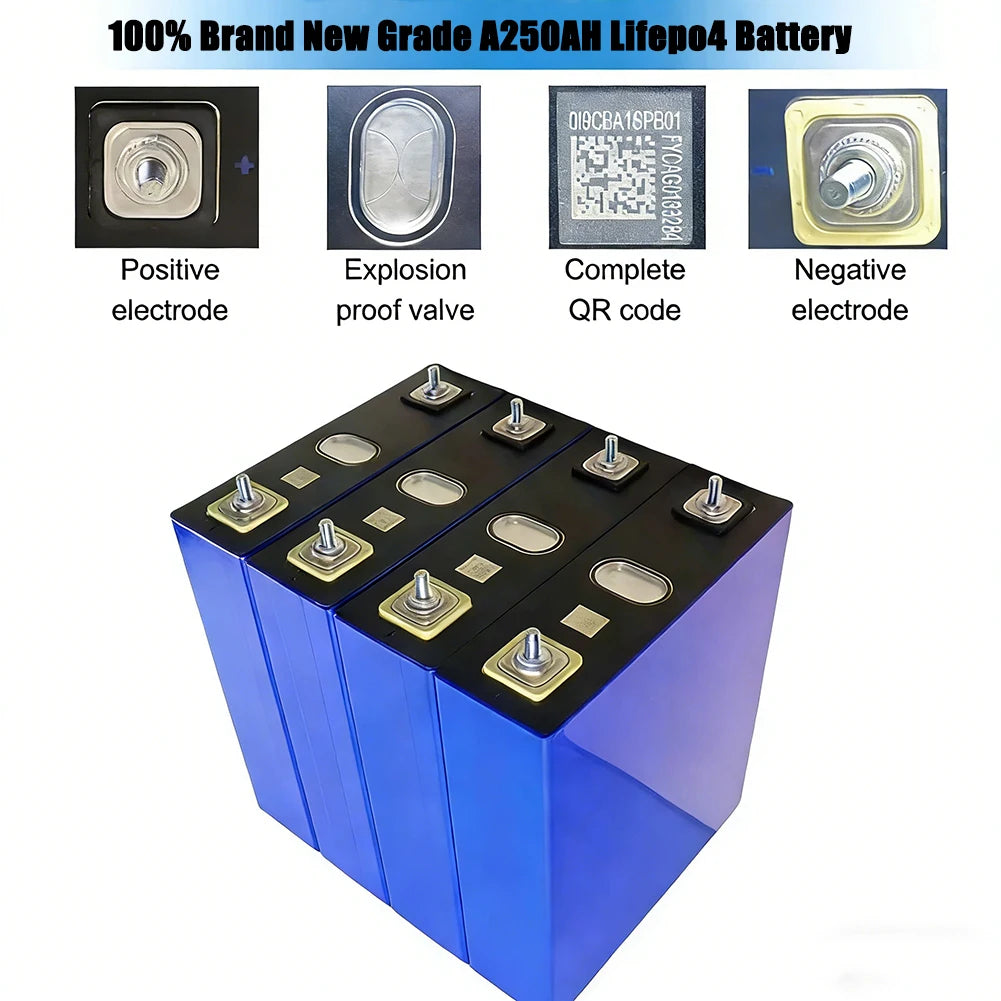

[Product specification]

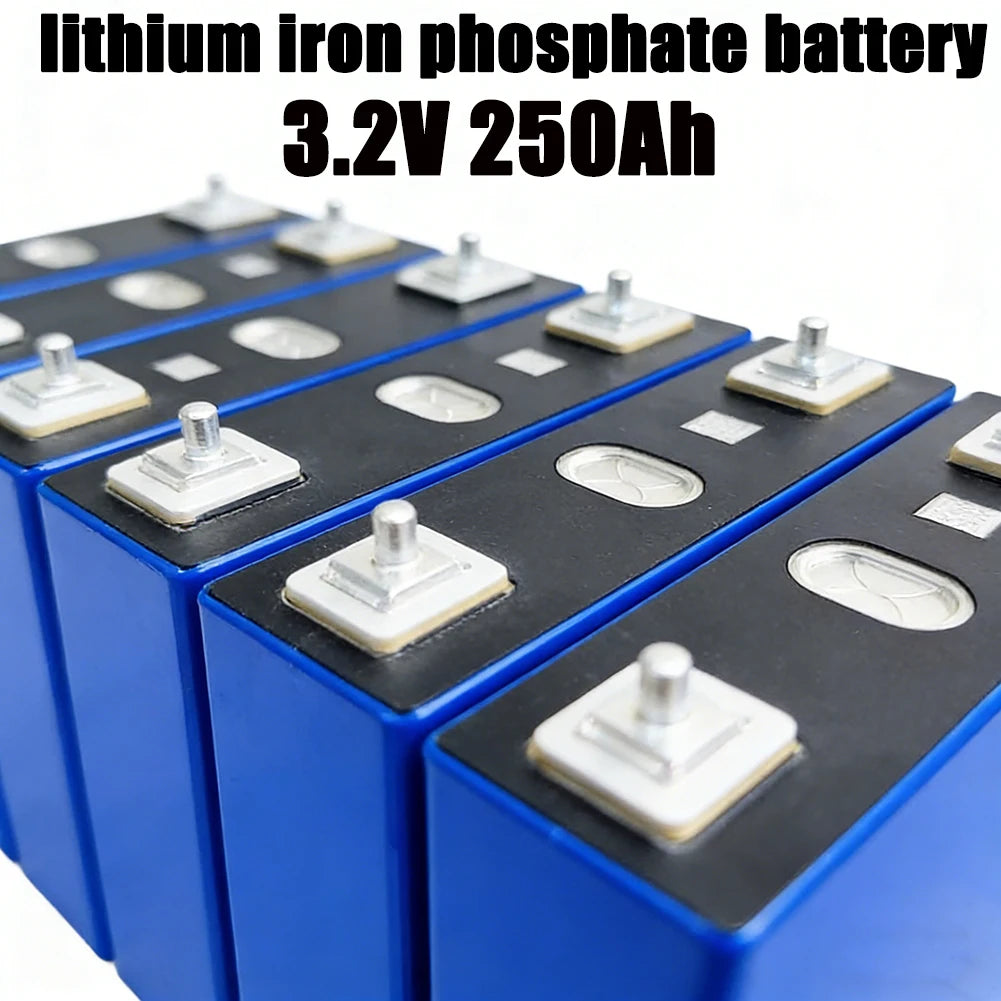

Product name: lithium iron phosphate battery
Battery Model: 3.2V 250Ah/230Ah
Battery type: LiFePO4
Housing material: Aluminum
Rated voltage: 3.2V
Nominal capacity: 250000mAh/230000mAh
Internal impedance: ＜0.5mΩ
Recommended constant current: 250A (1C)
Discharge termination voltage: 2.0V
Recommended constant current: 250A (1C)
Charging voltage: 3.65v
Maximum continuous discharge current: 250A (1C)
Maximum Peak Discharge Current: 1500A (6C)
Life cycle: 6000 times (80% DOD)
Charging temperature: 0~60 ℃
Discharge temperature: -35~60 ℃
Weight: About 4.15KG
Size: 205*175*55mm
